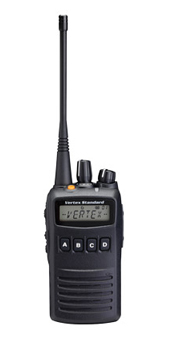

The industrial grade VX-450 Series maximises worker uptime with expanded
safety applications and convenient built-in features designed for heavy duty use.
As with all Vertex Standard radios, the VX-450 series includes built-in Emergency and
Lone Worker alerts. Emergency notification is user-initiated with a press of a button
for the radio to switch to a designated channel and send an alert for help.
Lone Worker mode is a built-in timer that requires the user to reset at a
predetermined interval. If not reset, the radio automatically switches
to Emergency mode to alert help.
When constant contact is required at all times, Vertex Standard’s exclusive
Auto-Range Transpond System (ARTS™) is included to inform the user that other
ARTS™ equipped radios are within communication range.
• Frequency Range - VHF: 134 - 174MHz - UHF 1: 400-470 MHz - UHF 2: 450-520 MHz
• Number of Channels and Groups: 512 / 32 Groups (VX-459, VX-454) - 32 / 2 Groups (VX-451)
• Power Supply Voltage: 7.5 V DC ± 20% • Channel Spacing: 12.5 / 20 / 25 kHz
• RF Input-Output Impedance: 50 Ohms • PLL Steps: 1.25 / 2.5 / 5 / 6.25 kHz 5 / 6.25 kHz
• IP Rating: IP 57 • Frequency Stability ±2.5 ppm
• Battery Life: 2400 mAh FNB-V113LI
VHF: 18.5 hours (w/saver) / 16 hours - UHF: 18 hours (w/saver) / 15.6 hours
• Battery Life: 1170 mAh FNB-V112LI
VHF: 9.5 hours (w/saver) / 8.6 hours - UHF: 9.2 hours (w/saver) / 8.3 hours
• Operating Temperature Range: -30º C to +60º C (-22º F to +140º F)
• Receiver Specification: measured by TIA/EIA-603
• Dimension with FNB-V112LI (H x W x D): 109 x 58.5 x 34 mm (4.29 x 2.3 x 1.34 inches)
• Dimension with FNB-V113LI (H x W x D): 109 x 58.5 x 43 mm (4.29 x 2.3 x 1.69 inches)
• Weight (Approx.): 296 g (10.44 oz) (w/FNB-V112LI, ANT, Belt Clip) - 340 g (11.99 oz) (w/FNB-V113LI, ANT, Belt Clip)
• Hum and Noise: 45 dB / 40 dB • Intermodulation: 70 dB / 65 dB • Spurious and Image Rejection: 70 dB
•Sensitivity 12dB SINAD: 0.25 μV 0.32 μV • Adjacent Channel Selectivity: 70 dB / 65 dB Audio Output: 700 mW (internal @ 16 Ohms, 5% THD) - 500 mW (external @ 4 Ohms, 5% THD)
• Transmitter Specification: measured by TIA/EIA-603 • Output Power: 5 / 2.5 / 1 / 0.25 Watt (selectable by channel)
• Modulation: 16K0F3E, 11K0F3E • Maximum Deviation: ± 5.0 kHz / ± 2.5 kHz • Audio Distortion: < 3 % @1 kHz
• Conducted Spurious Emissions: 70 dB below carrier • FM Hum and Noise: 45 dB / 40 dB
SL1000 PMR Handportable
The SL1000 series is easy to operate, and has been designed to withstand the
rigours of everyday use. The SL1000 is IP54 rated, which incorporates both dust
and water spray protection. This makes the SL1000 both robust and reliable.
It is the perfect, low cost voice communication tool for many industries
including: Fire, Railways, Security, Construction and Retail.
It is also an excellent low cost choice for Hire Stock.
The high capacity 1500mAh Li-ion battery provides many hours of continuous
operation between charges, which will benefit long shift workers. Also, they do not
suffer the “memory effect” that reduces the performance of traditional Ni-Cad and
Ni-Mh batteries. The SL1000 comes as standard with battery,
rapid charger, antenna, belt clip and user manual.
• Channels 16 (fully programmable)
• Bands VHF (V2) 148-174MHz - UHF (U2) 440-470MHz
• Channel Spacing: 12.5KHz & 25KHz (programmable)
• Operation: Half Duplex
• Antenna Impedance: 50 Ohm
• Tone Sets: CTCSS / DCS
• Power Supply: 7.5V dc Nominal
• Battery Life: 15Hrs with 1500mAh battery (90:5:5 duty cycle)
• Dimensions: 129(H) x 59(W) x 42 (D)mm (without antenna & belt clip)
• Weight: 270g inc. battery and antenna
• RF Power Output 5W (High) 1W (Low)
• Specification R&TTE Directive 1999/5/EC - ETSI EN 300 086-02
• Audio Power: Output External 4 Ohms @ 600mW

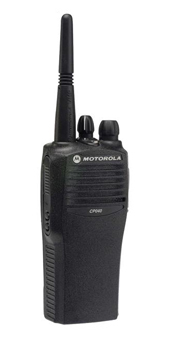

Motorola CP040
The Motorola CP040 offers simple radio communication for small and
medium-sized organisations at a very competitive price. Designed with
small and medium-sized warehousing, agriculture, security, light industry and
services customers in mind, the four channel CP040 requires minimal training and
keeps team members in touch without distracting them with complicated features.
Management can monitor all voice traffic and
get a message to the team in seconds, however large the site.
